“POP” is the choice to customize surfaces (both horizontal and vertical).
The production opportunity is given by the application of a particular film that can be solid color in the color required by the customer, or with the printing of a design, a company logo or a picture, also provided by the customer to our chart, in high definition jpg format.
Technically, there are two different applications: the first with the custom drawing and the second with a transparent film, with no-scratch features, to protect the first film. The process is reversible: films can be removed and changed in any time.
The application of the film for the glass tops can be under or overlap. Whereas for melaninic tops, fthe application of the film consists of a covering that turns into the unseen side, beyond the thickness of the top itself.

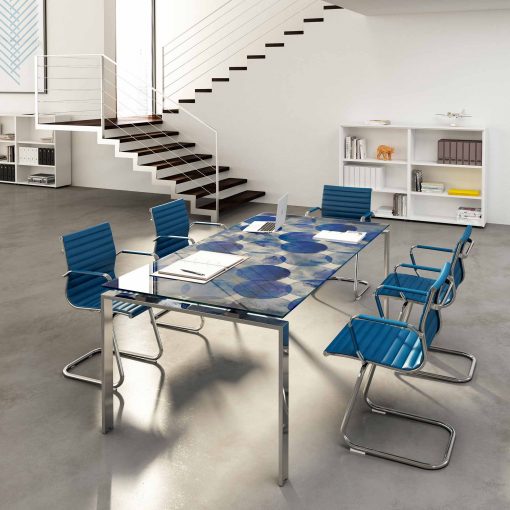

UNDER TOP FILM APPLICATION The decorative effect of the under-applied printed film is amplified by the play of reflections and the transparency of the glass in which the top is made.
The film must necessarily take place before gluing the stainless steel spacers that make the plane integral with the structure. The glass is extra light to avoid color changes on the underlying decorations.
OVER TOP FILM APPLICATION The material of which the plan is made can be perceived through the transparency of the thickness. The worktop offers the anti-scratch surface of the protective film to the touch.
The structure of the Pop line consists of a pair of under-storey beams and a pair of “bridge” terminal legs.
The legs are made of pickled metal tubular tubular metal with rectangular section 70×20 mm. and a thickness of 2 mm, laser cut and perforated.
In addition to single legs and shared legs for multiple workstations, the system also includes a series of asymmetric legs that allow the use of load-bearing filing cabinets.
Adjustable ground adjustable feet complete the metal legs.
The metal beams have a “C” section that gives them the necessary flexural strength. They are made of pickled sheet metal P11 2 mm thick, the cutting and processing are carried out by punching and subsequent press-folding.
All metal parts are available in white Ral 9003 finish with a smooth matt finish, or in bonderized grey or chrome finish.
On request, legs are available in 5 different RAL colours, or on RAL colour at the customer’s request with plastic inserts in grey, white or black. The gland marsupes can be hooked to the fixed beams and can also be mounted on desk tops already assembled to the metal structure.
The accessories available are: under-storey cable gland carrier, suspended metal computer rack, wooden or soundproof screen divider in various sizes, wood panel modesty panel in the same finish as the desk top, cable gland cap/top access, cable gland vertebra.
In addition, a series of accessories are also available for the opposing double workstations, which are mounted on a central rail, positioned between the two opposing desks, through a plug-in system. The rail accessories available are: vertical screens in melamine, or made of methacrylate, metal accessories such as the pantograph lamp, arm holder and shelf.
The bookcases are made with a structure in white melamine enamelled, with a depth of 34.8 cm and two different widths (single or double sash) equal to 45 or 90 cm.
The cabinets can be low (h 83 cm), medium (h 121.4 cm) or high (201.4 cm), to which must be added the height of the finishing top (optional) of 1.8 cm.
The back is manufactured in 18 mm thick melamine thickness. White veined, oak or dove-coloured, with ABS2 mm edges. tinted. The doors and tops are made of melamine 18 mm thick and also available in white veined, oak or dove.
The handles are available in white RAL 9003, or aluminium or chrome plated to the metal legs of the desks in the collection.
The bookcases can be supplied with or without finishing shoulders. Glass doors with anodised natural aluminium frame are available with lock, tempered glass 4 mm thick transparent or satinated. Doors with back lacquered or furred glass in colour are available on request.
The characteristic of the Doria cabinets is the possibility to fit the doors, or the backs indifferently on the two opposite sides of the structure; in this way the compositions can find space in the centre room with opening of the doors on the two opposite sides.
In addition to the classic bookcases, there are cabinets that can be attached to the desks, and that act as a side leg or partition between bench stations. Specifically, the Doria line has low desk side cabinets (height desk), medium (h). 121.4 cm), with front drawer hanging folder holder (h. 121.4 cm) or with load-bearing filing cabinet (height desk).
The DORIA CUBE cabinet is a modular box composed of square compartments each measuring 39 x 39 cm, arranged in columns of 4 compartments.
The compartments of the Doria Cube can be open, or equipped with a door leaf with an opening system push-up.
The doors are available in white, oak, turtledove, in the 19 finishes of Multicolour or filmable with drawing supplied by the customer.
A particular application of the Doria Cube is the CUBE LOVE, made with peeled doors with contrasting black and white hearts, like the famous POP work by the artist Robert Indiana.
