Height-adjustable frame for desk top and extension available in white.
Data sheet

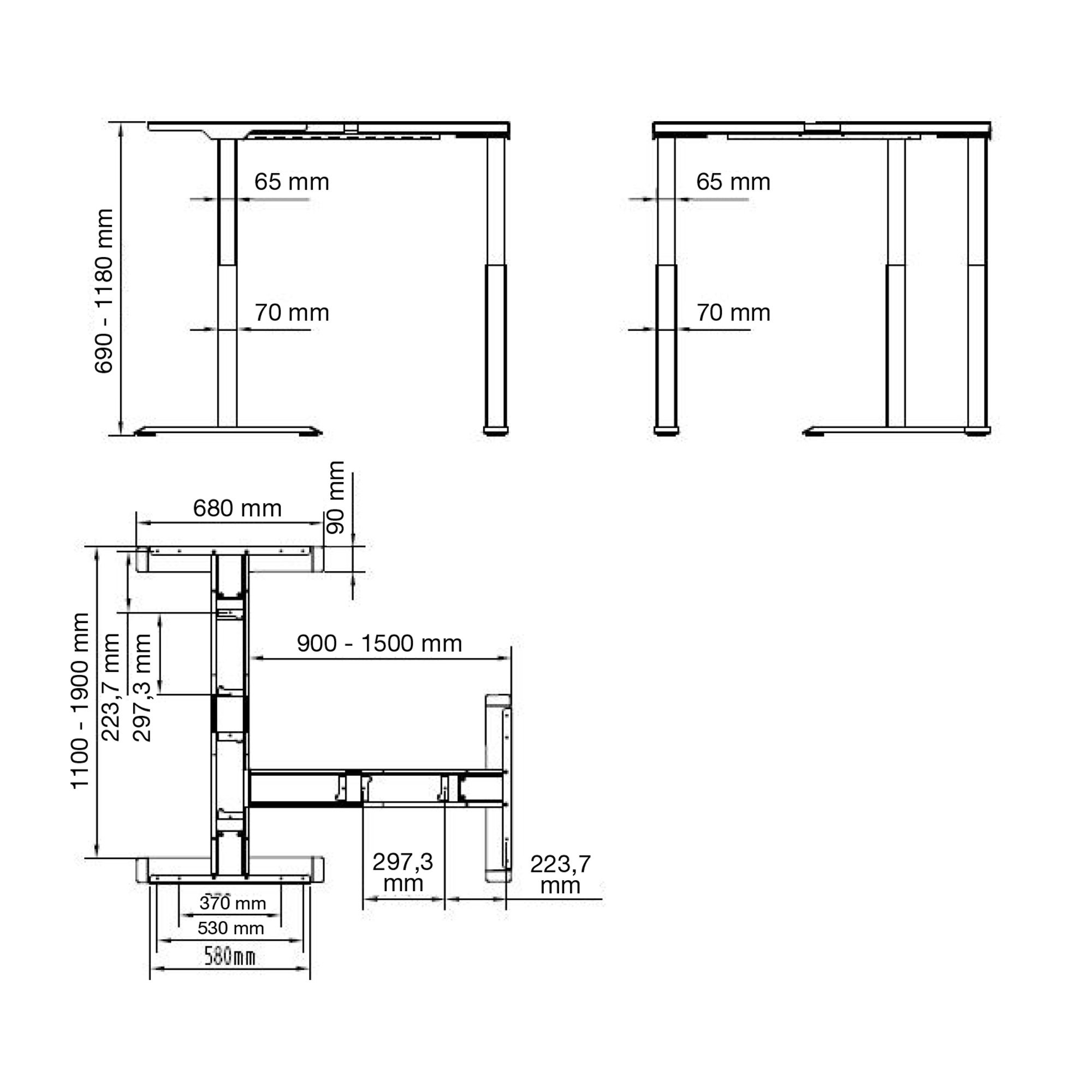

• Height Range: 27.2”-46.5”/690-1180mm
• Supporting Beam Width Range: 43.3”-74.8”/1100-1900mm
• Auxiliary Beam Width Range: 49.6”-73.2”/1260-1860mm
• RECOMMENDED TABLETOP DIMENSIONS:
Main 47.2”-78.7”/1200-2000mm (Lenght)
Vice 51.2”-70.9”/1300-1800mm (Lenght)
23.6”-31.5”/600-800mm (Depth)
• Load Capacity: 330lbs/150kg
• Speed: 32mm/s
• Noise Level: <50 dB
• Low Standby Power: <0.5W
• Holeless Design Column
• Optional Control Panel
• Surface: Spray Colors White
Default control panel
• Built-in Sensor Anti-pinch Function, Anti-collision Function (Adjust the corresponding function according to the gear)
• Related Product Component Certification: CB, CE-EMC, CE-LVD, RoHS, FCC, UL, CUL, RCM etc
-
- Seven-Button Remote
- Digital Height Display
- Three Programmable Positions
- Time Reminder
- (HS11A-1)
The tops that can be combined with the structures are part of the Centrufficio production in the standard finishes, or on demand, of the Doria, Bramante, Ennepi and Fusion lines.
