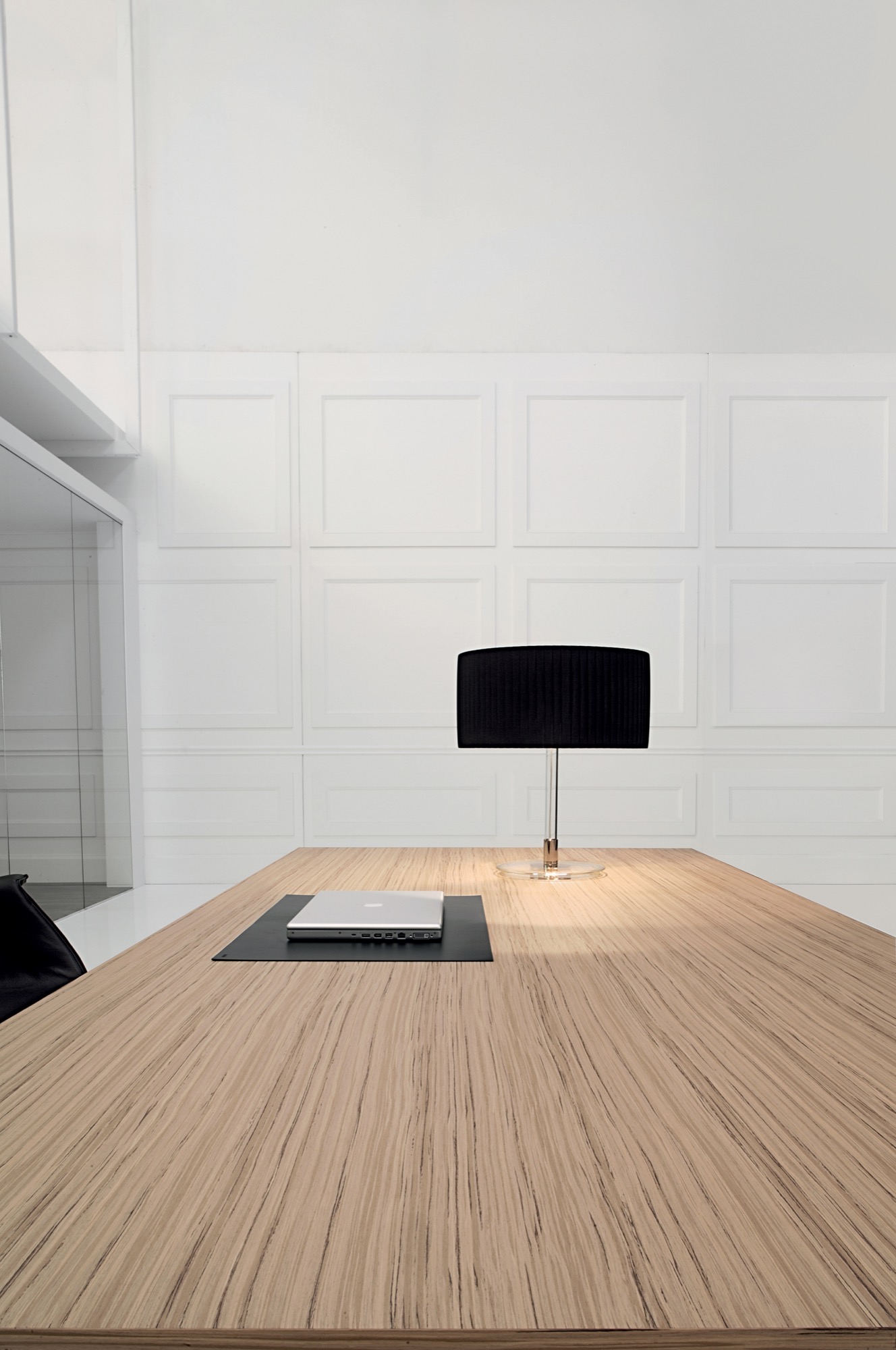

Wood veneered tops: 14 mm thick wooden particle board panels, wood veneered walnut or zebrano chiaro finish, painted with UV finish, open pore, wooden edge 1 mm thick.
Lacquered tops: 14 mm thick wooden particle board panels, melamine-coated paper, 1,5 thick ABS edge and matt lacquered in the colours as per catalogue references.
Melamine tops: 14 mm thick wooden particle board panels, melamine-coated paper olmo, nocino, white, titanio and rovere naturale, ABS edge 1,5 mm thick.
The fixing of the tops is made through nylon connections and metric screws to fix them to the structure in the extruded aluminium
Glass tops: 12 mm thick glass, glossy flat edge and rounded corners, rear-lacquered in the colours as per catalogue references.
Glass tops “no finger print”: 12 mm thick glass glossy flat edge and rounded corners, rear-lacquered in the colours as per catalogue references and acid-etched surface.
The etching process is a treatment made on one side of the glass with a particular acid solution that avoid the fingers prints.
Structure: beams in extruded aluminium, section 63×60 mm, connected by a dye-casting joint (flange), fixed inside with metric pitch screws, epoxidic powder varnished aluminium, aluminium brill (beams) or chromed (flanges) finishes.

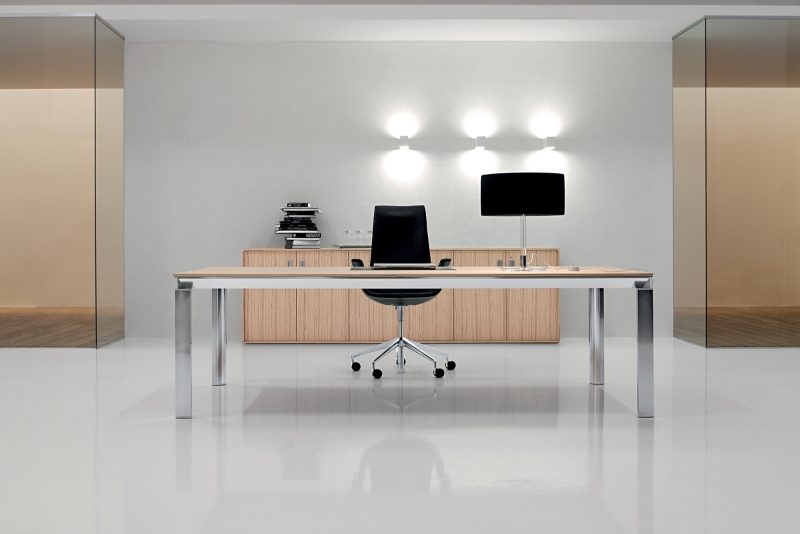

Legs: realized in extruded aluminium, section 80×80 mm, epoxidic powder varnished aluminium or brill aluminium finishes. Legs have extruded aluminium lower and upper cap, aluminium or chromed finish. All legs have leveling feet included. Legs are available for desks H. 750 mm.
Side wall: wall frame in extruded aluminium brill finish with four different finishing panels:
1. wooden particle board panels, melamine-coated paper as per catalogue references.
2. wooden particle board panels, melamine-coated paper and matt lacquered in the colours as per catalogue references.
3. wooden particle board panels, melamine-coated paper and brushed glossy lacquered in the colours as per catalogue references.
4. wooden particle board panels, wood veneered walnut or zebrano chiaro finish.
Pillar legs: with square base stainless steel plate 10 mm thick and square column section 100×100, has a top plate for attachment to the frame of the table.
In the meeting table with pillar legs you can close the gap between the two pillars with 14 mm thick particle board panels in wood veneered walnut or zebrano chiaro finish with 1,0 mm thick wooden edge or with 14 mm thick particle board panels melamine-coated paper olmo, nocino, white, titanio, rovere naturale finish or lacquered in the colours as per catalogue references. They are hooked to the pillar legs with magnets.
Horizontal cable management:
– Cable port (type C) 260×120 mm made with extruded aluminium with easy access in anodized aluminium or lacquered white.

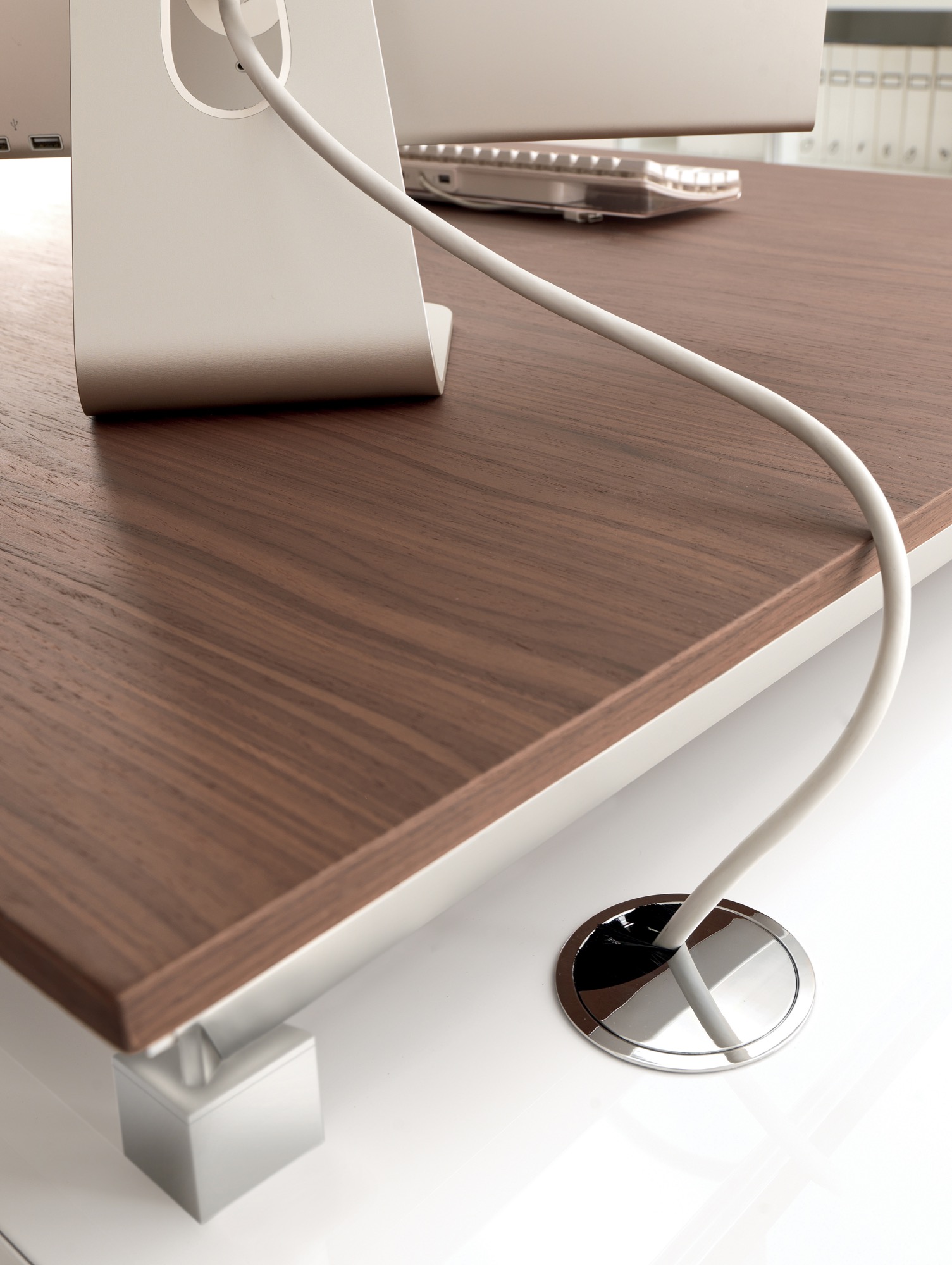

– Cable port (type D) diameter 80 mm made with die-cast aluminium-zinc alloy, chromed finish with brush.
– Cable port (type E) diameter 80 mm made in ABS in aluminium finish.
– Plug in (type G) inside diameter 80mm, equipped with 2 plugs: data and power, with metal sliding covers white and aluminum finishing.
– Single cable port, chromed profile type L: structure sides in extruded polished aluminium and short edges in chromed die-cast aluminium; flap made of 14 mm thick particle board, wood veneered multilaminar ajus in walnut or zebrano chiaro finish or coated with melamine paper, lacquered with polyurethane paint mat or brushed glossy finish. It is equipped with brush for the passage of cables and is also available in glass version in same finishing as the tops and in leather or faux-leather version.
– Power module on top (Type P): built in power socket (Shuko, France, UK) + 1 powered USB port.

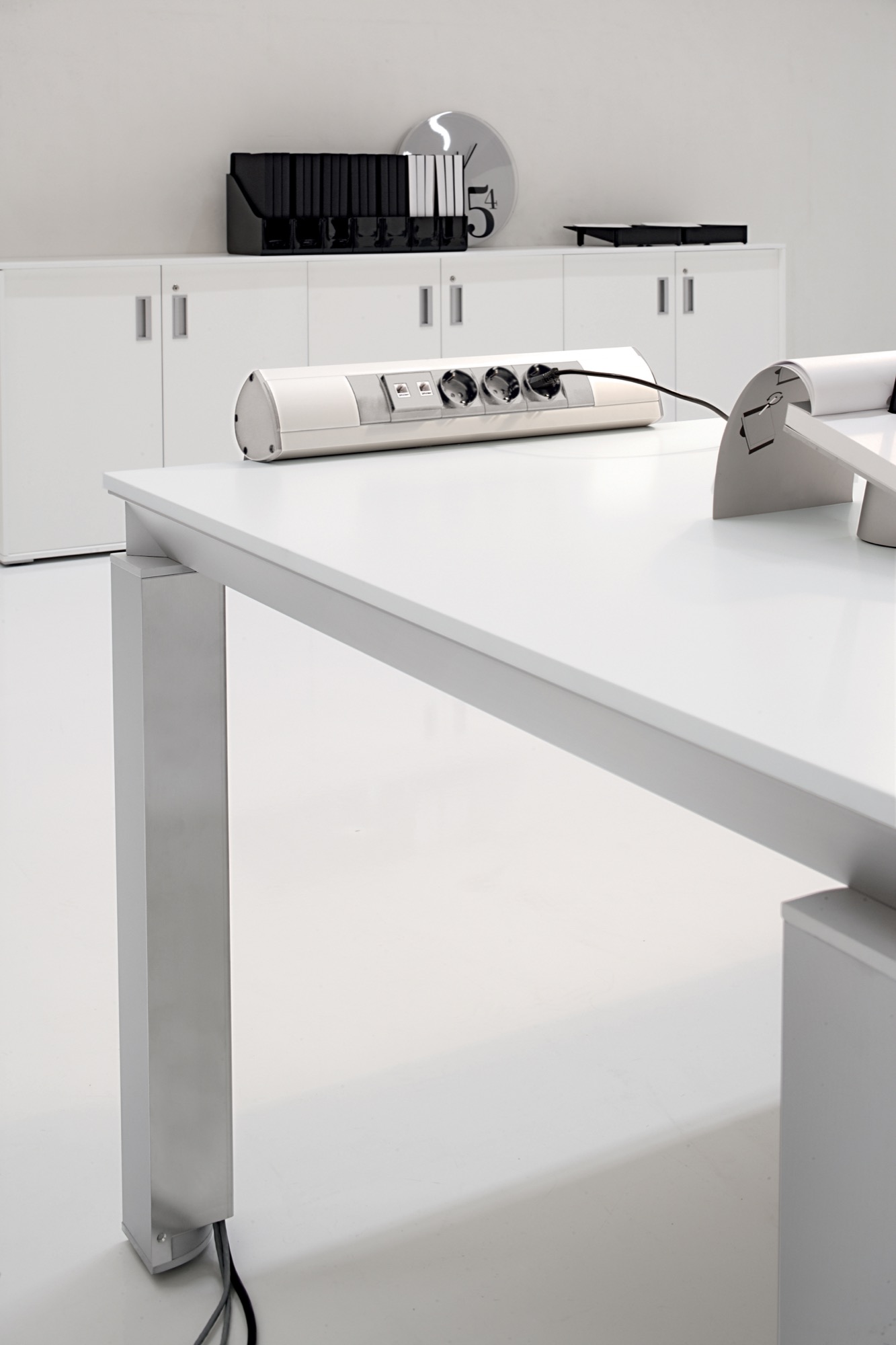

– Turnable motorized plug made in anodized aluminium, equipped with 2 Shuko plugs + 2 datas plugs + 2 powered USB.
– Top flush- mounted socket (type T) with black frame, equipped with 3 power plug (Shuko, Francia, UK) + 2 RJ45 +2 powered USB.

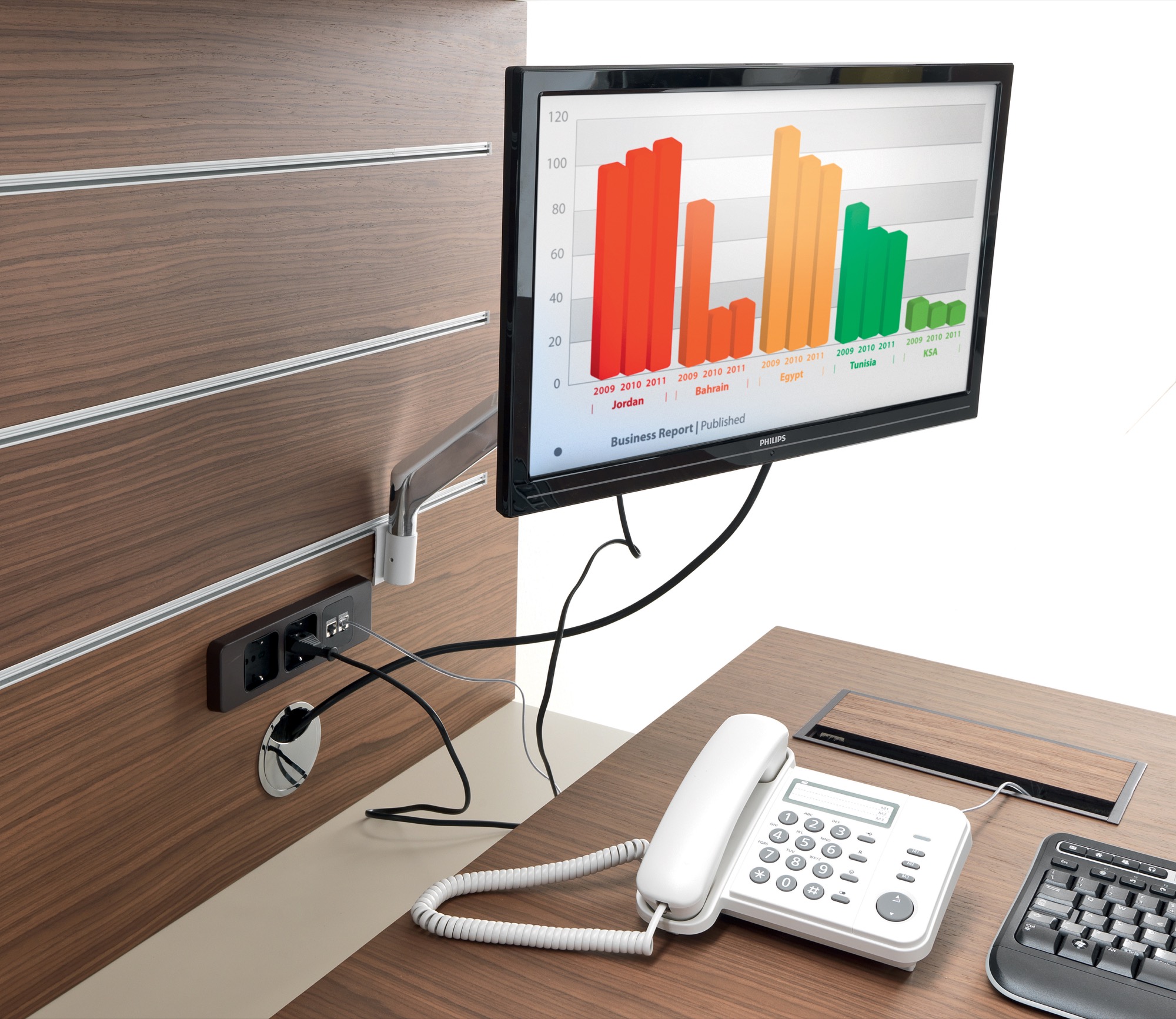

– Plug-in flap (type R) made in extruded aluminium. Can be equipped with different types of plugs.

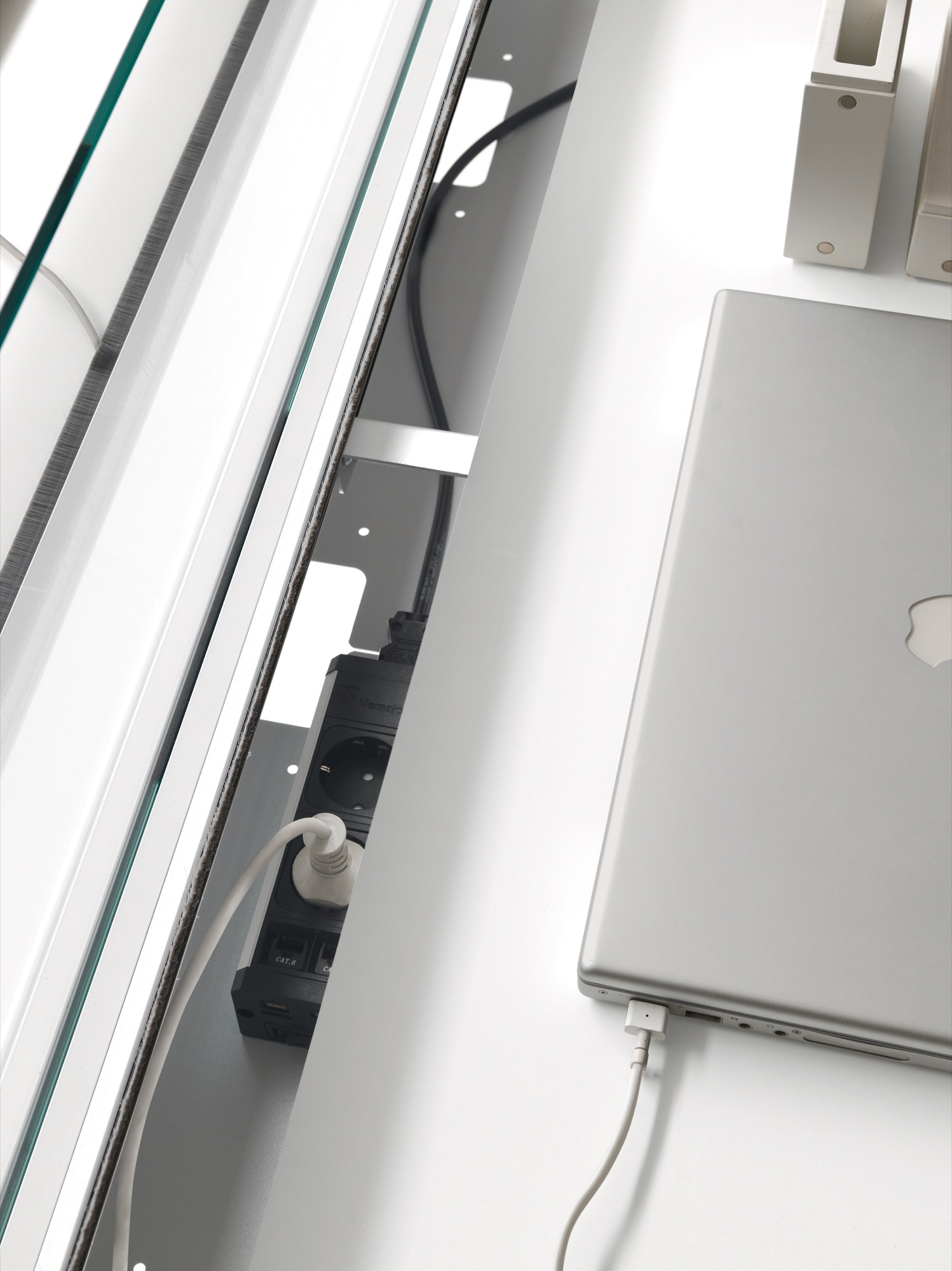

– Flip top realized with extruded aluminium, epoxidic powder varnished white or anodized aluminium finishing; equipped with easy access in two ways to the metal tray.
Underneath cable management:
– Metal cable trays, made of steel plate, epoxidic powder varnished aluminium finish, available in two versions: the tray for single desk, which is fixed inside the metal beams with metric screws and jacks and the tray for meeting table, which is fixed on both sides to the beams of the structure.
Vertical cable management:
– Vertebra, realized in transparent ABS, is fixed to the desk top or to the metal tray underneath
– Vertebra for cables, steel made chromed finishing with internal brush.
– Cable cover for leg, aluminium or brill finishing.
– Structural leg for cables, equipped with removable panels in melamine finish white, nocino, rovere naturale or olmo or lacquered with matt or glossy polyurethane paints or in wood walnut or zebrano chiaro finish. It is fixed to the desk structure and equipped with a metal cover quickly removable for an easy access to the cables.
The modesty panel is fixed to the beams, using special supports; on site, you can choose the suitable position of the modesty panel.
Modesty: 18 mm thick wooden particle board panels, wood veneered walnut or zebrano chiaro finish, painted with UV finish, open pore, 1 mm wooden edge or melamine-coated paper olmo, nocino, titanio, white, rovere naturale finish or matt lacquered in the colours as per catalogue references, 1,5 mm ABS edge. Availablealso with roundededges.
